Basket dispenser
KO 65-53
Product code:
0161670
Key facts
For baskets 650 × 530 mm
Single-walled
Max. load: 150 kg
Stainless steel
Product information

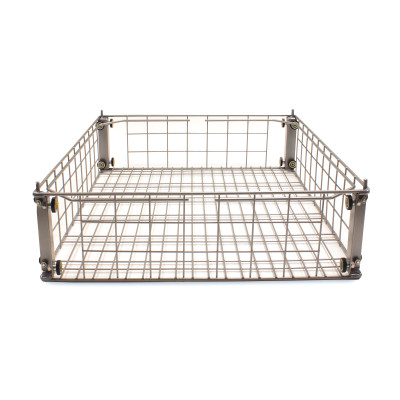

Dispenser in self-supporting and hygienic design, made of high-quality stainless steel. Closed, smooth outer housing with open stacking compartment. Removable basket made of plastic-coated stainless steel as stacking platform with ball bearing platform guide, can be included in stacking capacity. Consistent output height thanks to manually adjustable stainless steel tension spring system. Easy cleaning of stacking compartment from above and via a cleaning opening in the base plate. Four massive polymer corner bumpers, of which two at the upper corners of the structure that serve as bumpers and protect the equipment on all sides as well as building-side walls from being damaged, with integrated, ergonomically-shaped push bars. Dispenser runs on 4 swivel casters of which 2 with total locks, ø 4.9'' (125 mm), fastened by means of screw-on plates and several screws.

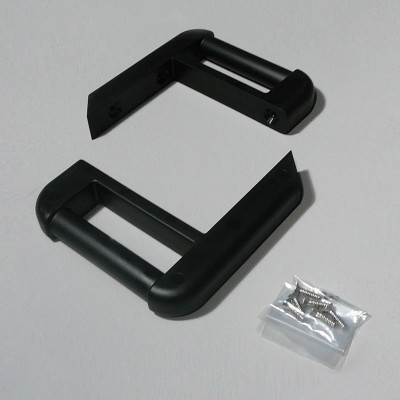

The Hupfer basket dispenser KO 65-53 has two push handles installed on the corners of the unit to ensure optimal handling properties. The ergonomically shaped push handles also guarantee effective protection against injuries to the hands. The installation height of 900 mm is the standard working height in food distribution. The guide basket, which comes as series standard, is the same as the non-rusting, stainless steel crockery baskets available as an optional accessory,and increases the stacking capacity by approx. 20 %.
Technical information
Capacity: | 6 Körbe 115 mm, 9 Körbe 75 mm hoch |
Payload: | 150 kg |
Weight: | 45.667 kg |
Width: | 851 mm |
Depth: | 760 mm |
Height: | 900 mm |
Downloads
-
Spec sheet
TypeProduct dataFile typepdf (ca. 1.5 MB)Creation Date20.11.2024 -
Tender specification
TypeProduct dataFile typeText for clipboardCreation Date20.11.2024 -
Basket dispenser KO/50-50 | KO/65-53 | KO/50-50K | KO/65-53K | KOUH/50-50 | KOUH/65-53 | EBS/50-50 | EBS-T/50-50 | EBSH/50-50 | EBSH-T/50-50 | Operating instructions
TypeOperating and assembly instructionsFile typepdf (1.17 MB)Creation Date4 Dec 2020 -
Care instructions for stainless steel
TypeOperating and assembly instructionsFile typepdf (0.54 MB)Creation Date30 Nov 2020 -
0161670 DWG drawing
TypeDWG drawingsFile typedwg (0.24 MB)Creation Date15 Oct 2019Protected download for dealers and consultants: Please log in and get in touch with our contact partners with regard to activation if necessary. -
Stacking equipment
TypeBrochures and product informationFile typepdf (2.90 MB)Creation Date15 Oct 2019
Accessories
GeKo besch 650/530/075
P/N 0117002

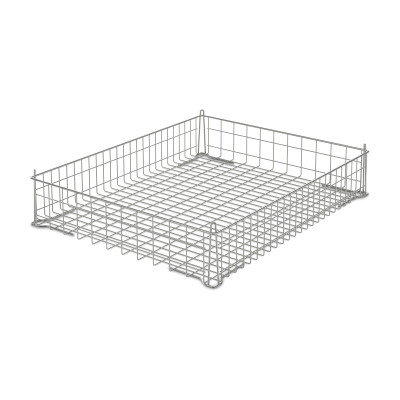

GeKo besch 650/530/115
P/N 0117012

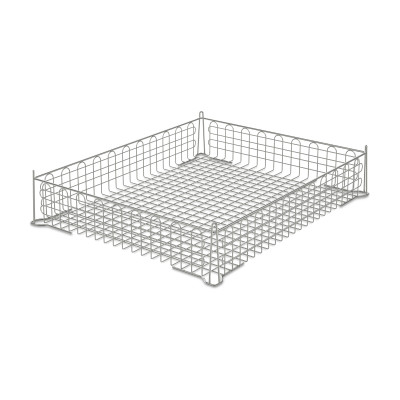

GeKo epol 650/530/115
P/N 0113832
GeKo epol 650/530/075
P/N 0113822

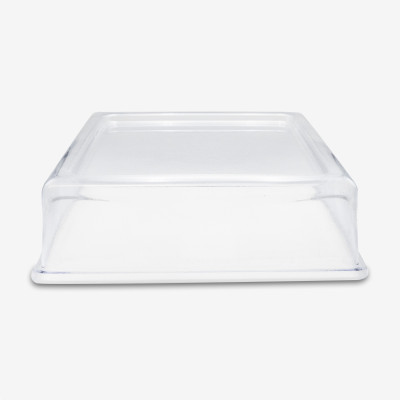

AH PP 710/590/180/4 tr
P/N 014041071
Poly P3/125 - Edelst P3/125
P/N 0164470
Spare parts

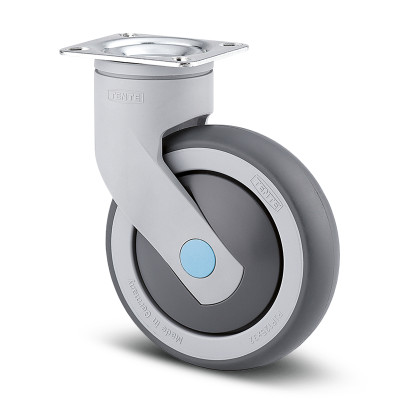

LR Poly P3/125
P/N 014000401

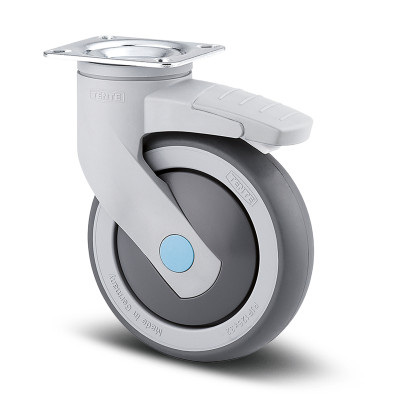

LR Poly P3/125 mF
P/N 014000402
