CJD transport trolley
ESW/Creutzfeld-Jakob 635/975/915
Product code:
7504541
Key facts
Incl. 2 special containers 21 l with handles on top
Container dimensions: 530 x 325 mm
Stainless steel
Product information

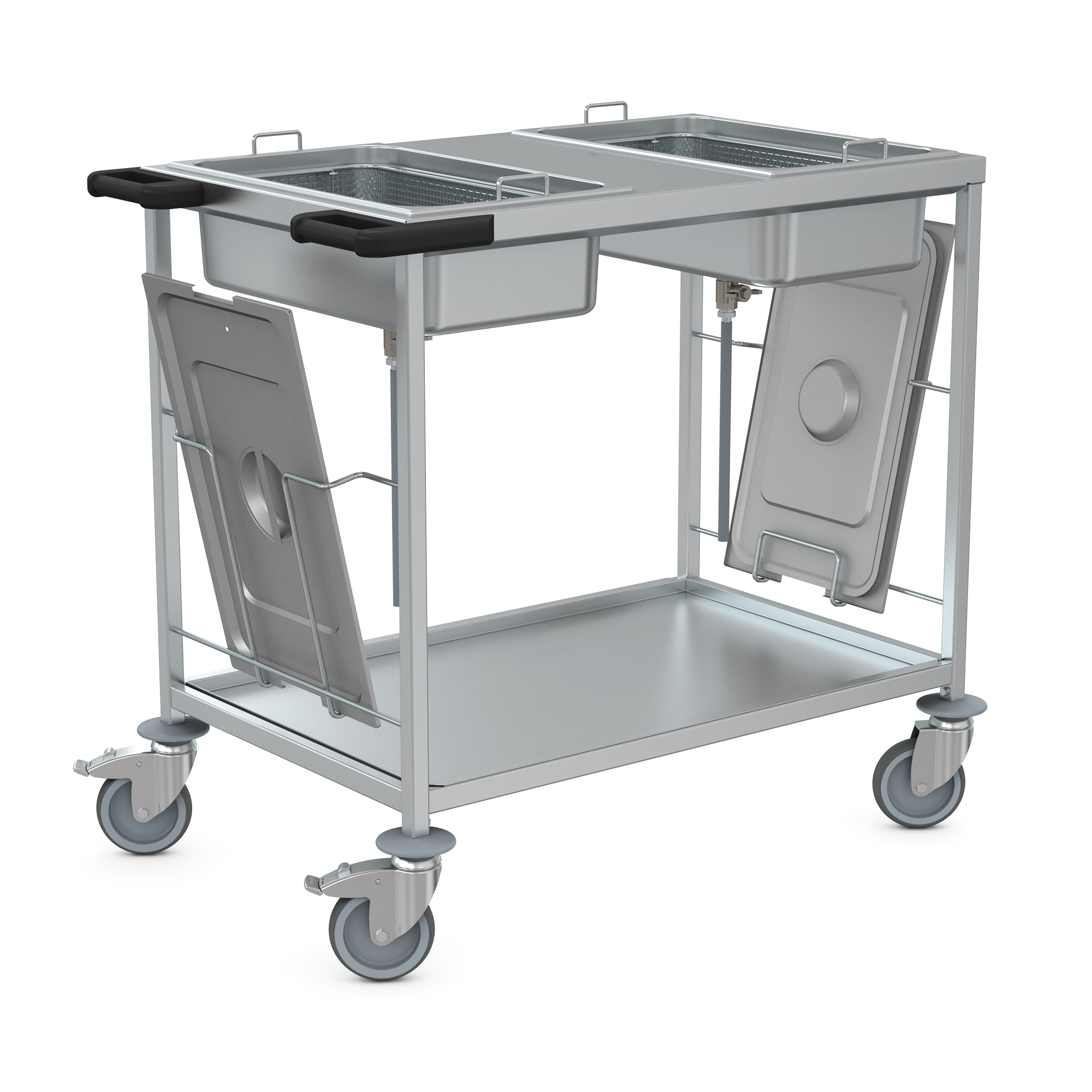

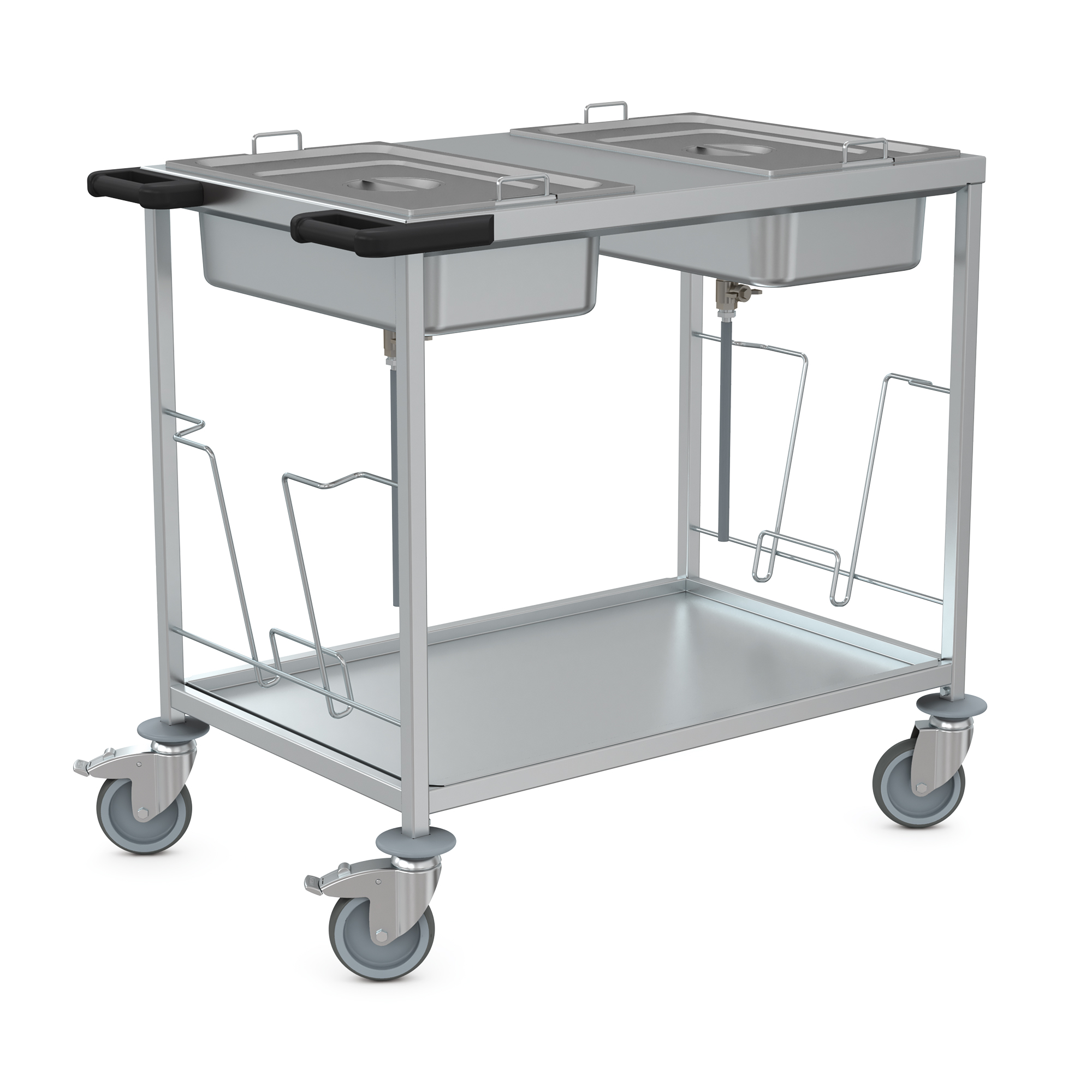

Trolley in robust, self-supporting and hygienic design, made of high-quality stainless steel. Open design, made of square tubes with loosely attached stainless steel containers with fixed upper handles and inserted strainer bowls with chest handles. Container ¿ after filling with 2-molar sodium hydroxide solution ¿ for holding and manual cleaning surgical instruments that have potentially or evidentially been contaminated with the Creutzfeldt-Jakob disease pathogen, and for 24-hour intermediate storage as preparatory measure for sterilisation. Containers covered by stainless steel lid with continuous silicone seal. Underside of containers with welded 1/2'' ball valves enabling drainage of sodium hydroxide into building-side plastic disposal containers via plugged-on hose pieces. The disposal containers are safely supported on a removable, flat stainless steel pan during filling. Both face sides of the trolley base fitted with wire racks for holding the stainless steel lids. Four massive polyethylene disc bumpers at the bottom and two polymer corner bumpers at the upper corners that serve as bumpers and very effectively protect the equipment on all sides as well as building-side walls from being damaged, with integrated ergonomically-designed push bars. Trolley runs on 4 swivel casters of which 2 with total locks, ø 4.9'' (125 mm), with pin fastening.
Technical information
Capacity: | 2 Behälter m.Griffen oben 530x325x150 mm |
Weight: | 32.767 kg |
Width: | 635 mm |
Depth: | 975 mm |
Height: | 915 mm |
Downloads
-
Spec sheet
TypeProduct dataFile typepdf (ca. 1.5 MB)Creation Date26.12.2024 -
Tender specification
TypeProduct dataFile typeText for clipboardCreation Date26.12.2024 -
Care instructions for stainless steel
TypeOperating and assembly instructionsFile typepdf (0.54 MB)Creation Date30 Nov 2020 -
7504541 DWG drawing
TypeDWG drawingsFile typedwg (0.26 MB)Creation Date15 Oct 2019Protected download for dealers and consultants: Please log in and get in touch with our contact partners with regard to activation if necessary.
Spare parts
AbwRo Ø95/17,5 gr Vierkantrohr 25/25
P/N 014012051
LR Edelst Rz3/125
P/N 014000108
LR Edelst Rz3/125 mF
P/N 014000109
