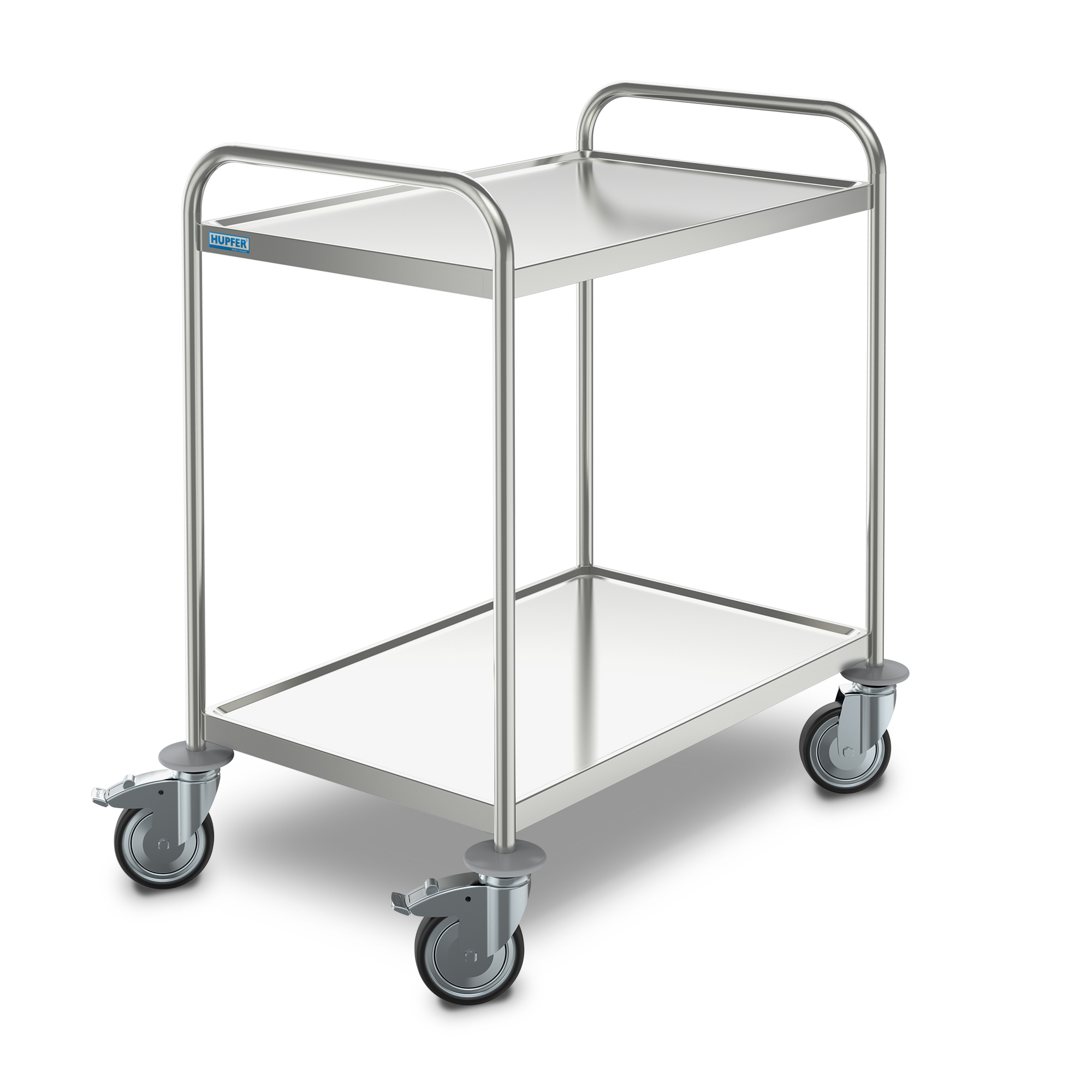

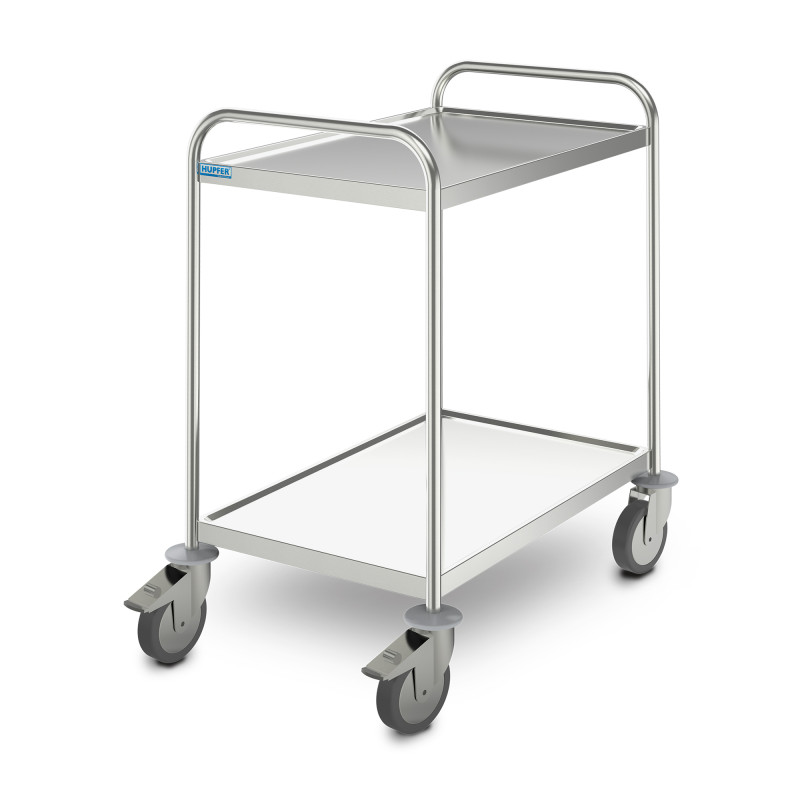

Medical general purpose trolley
MSW 6x4/2
Product code:
7504128
Key facts
Antistatic wheels
2 shelves
Payload: 80 kg
Shelf clearance: 538 mm
Product information
High-quality stainless steel trolley in stable, self-supporting and hygienic design, material 1.4301. ø 25 mm round tube frame with 2 welded deep shelves 600 × 400 mm with 10 mm high profile edge, hygienically folded by 35 mm and rebated inwards, designed for easy cleaning. Push bars integrated in the tubular frame on both sides ensure easy manoeuvrability. 4 polyethylene disc bumpers provide collision protection and protect all sides of the trolley and nearby walls from damage.
Trolley runs on 4 corrosion-protected swivel rollers, ø 125 mm, 2 of them with lock, polymer housing with polymer wheel and antistatic plain bearing, pin fastening
Technical information
Capacity: | 2 Borde |
Payload: | 80 kg |
Weight: | 12.981 kg |
Width: | 695 mm |
Depth: | 495 mm |
Height: | 900 mm |
Downloads
-
Spec sheet
TypeProduct dataFile typepdf (ca. 1.5 MB)Creation Date21.12.2024 -
Tender specification
TypeProduct dataFile typeText for clipboardCreation Date21.12.2024 -
Serving trolley | SW | SW Ergo | SSW | SSW Ergo | MSW | MSSW | Operating instructions
TypeOperating and assembly instructionsFile typepdf (0.44 MB)Creation Date7 Dec 2020 -
Care instructions for stainless steel
TypeOperating and assembly instructionsFile typepdf (0.54 MB)Creation Date30 Nov 2020 -
7504128 DWG drawing
TypeDWG drawingsFile typedwg (0.11 MB)Creation Date15 Oct 2019Protected download for dealers and consultants: Please log in and get in touch with our contact partners with regard to activation if necessary.
Accessories
GA/3-s SW6x4 Ø8/599/330/50
P/N 0114506
GA/4-s SW6x4 Ø8/599/399/50
P/N 0114507
Spare parts
AbwRo Ø95/17,5 gr Rundrohr
P/N 014010025
LR Poly/St Rz1/125 anti
P/N 0191445142
LR Poly/St Rz1/125 anti mF
P/N 0191445149
