Sterile goods transport cart
STW/M 9StE 1249/751/1469 DR
Product code:
7504845
Key facts
Vertical push handles
Circumferential door seals
Stainless steel
270° wing doors
Product information

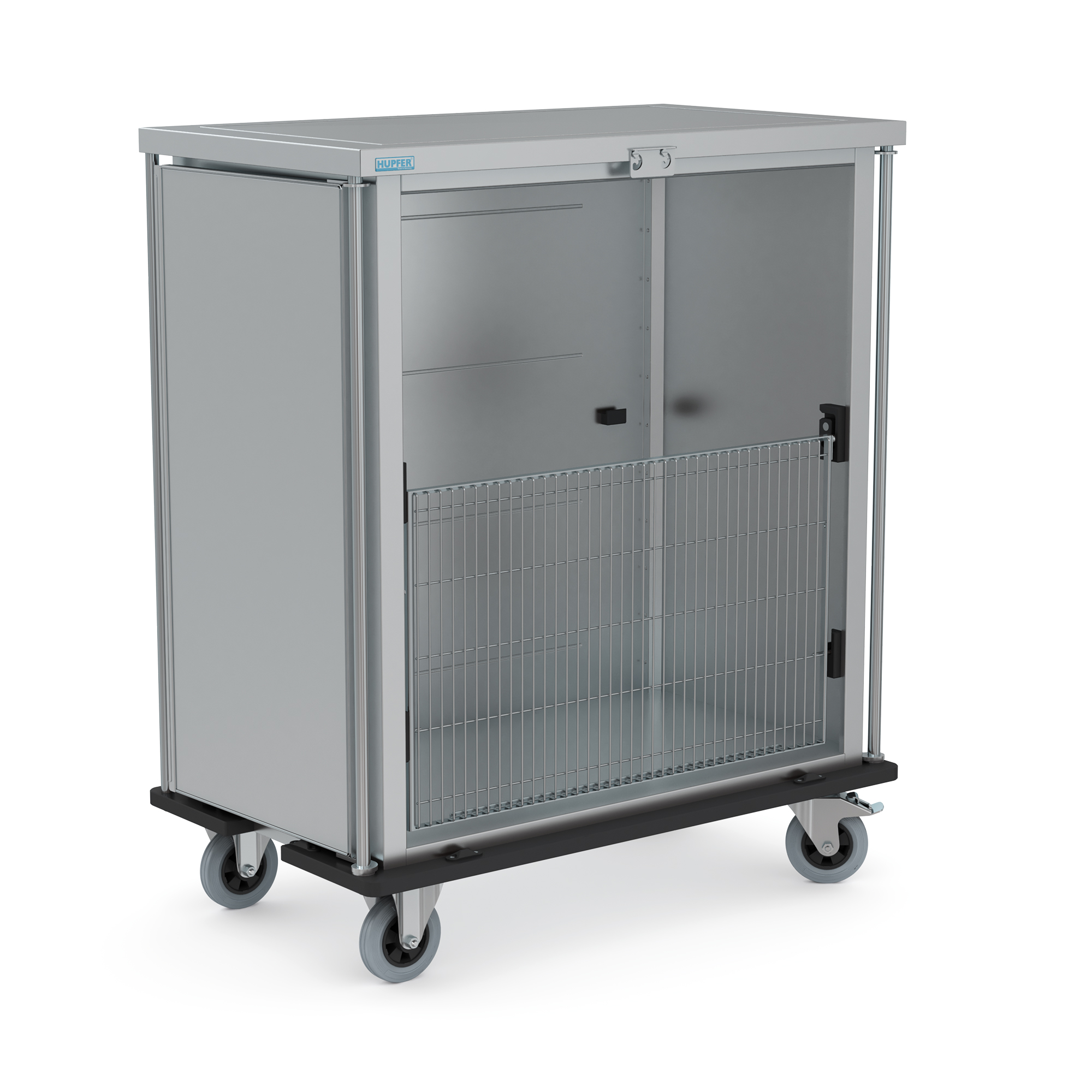

Trolley made entirely of high-quality stainless steel, self-supporting standard design. Single-walled transport trolley closed on all sides. The transport trolley is loaded on the long side via two double-walled double-wing doors that can be opened at an angle of 270°. The automatically-latching doors are attached to robust stainless steel hinges mounted on vertical push bars. A 2-point door lock with a transport latch and integrated sealing option in the upper section of the door, in combination with extensions to block the door lower edges, keep the doors safely closed during transport. The left door is additionally fitted with a stop bead, so together with the trolley profiling and the extra hygienic and easy to clean lip seals, optimum dust protection for the items to be transported is guaranteed. Extensions also serve to keep the doors open during loading, so no additional elements to be operated by a hand or foot are required. Rear wall with triple rolled bead for stiffening and sound insulation. Interior with wire shelf that is tiltable at three sides; in horizontal position for placing e.g. sterile and chemist´s supplies, in vertical position as front safeguard, e.g. for inserted laundry or waste bags. Four continuous vertical push bars (2 per side) for manoeuvring even with the doors open. Inherently stable chassis design, suitable for delivery transport and adaptable to automatic trolley transport systems. Bumper protective feature provided by robust, continuous bumper strip that is effective even with the doors open, with frontal recesses for connecting a towing device to the chassis. Trolley runs on 2 swivel casters with total lock, 2 fixed casters, fastened by means of screw-on plates and several screws.
Technical information
Capacity: | 9 × StE |
Payload: | 150 kg |
Weight: | 98.5 kg |
Width: | 1249 mm |
Depth: | 751 mm |
Height: | 1469 mm |
Downloads
-
Spec sheet
TypeProduct dataFile typepdf (ca. 1.5 MB)Creation Date22.12.2024 -
Tender specification
TypeProduct dataFile typeText for clipboardCreation Date22.12.2024 -
Sterile supply transport trolley | Container transport trolley | STWS | CTWS | Operating instructions
TypeOperating and assembly instructionsFile typepdf (0.28 MB)Creation Date4 Dec 2020 -
Container and sterile goods transport trolley
TypeBrochures and product informationFile typepdf (4.10 MB)Creation Date15 Oct 2019 -
Case Carts STWS
TypeBrochures and product informationFile typepdf (1.19 MB)Creation Date15 Oct 2019 -
7504845 DWG drawing
TypeDWG drawingsFile typedwg (0.30 MB)Creation Date15 Oct 2019Protected download for dealers and consultants: Please log in and get in touch with our contact partners with regard to activation if necessary.
Accessories
Stahl vzkt T1/160 - Stahl vzkt T1/200
P/N 0125052
Stahl vzkt T1/160 - Edelst T3/160 LR/BR
P/N 0125082
PapKl 90/18/70
P/N 7500895
Spare parts
BR St vzkt T1/160
P/N 014000152
LR T1/160 mF
P/N 014000151
