Fully-welded container transport cart
CTW/VV 9StE 1249/754/1440
Product code:
7504642
Key facts
With L-shaped rails for StU
Vertical push handles
Wing doors with 270° opening angle
Circumferential door seals
Product information
Single-walled trolley structure closed on all sides in fully welded design, suitable for washing devices. Double-walled double-wing doors with continuous seals, can be opened by 270°, automatic closing mechanism, operation with one hand. Door lock through integrated 2-point locking. Interior equipped as standard with removable L-shaped shelf rails that are height-adjustable within the entire interior height. Rails for holding sterile supplies baskets or containers. Four continuous vertical push bars (2 per side) for manoeuvring even with the doors open. Bumper protective feature provided by robust, continuous bumper strip that is effective also with the doors open, with frontal recesses for connecting a towing device to the chassis. Trolley runs on 2 swivel casters with total lock, 2 fixed casters, fastened by means of screw-on plates and several screws.
Technical information
Cleaning classification: | Waschanlagenresistent |
Capacity: | 9 × StE |
Payload: | 150 kg |
Weight: | 131.802 kg |
Width: | 1249 mm |
Depth: | 754 mm |
Height: | 1440 mm |
Downloads
-
Spec sheet
TypeProduct dataFile typepdf (ca. 1.5 MB)Creation Date21.11.2024 -
Tender specification
TypeProduct dataFile typeText for clipboardCreation Date21.11.2024 -

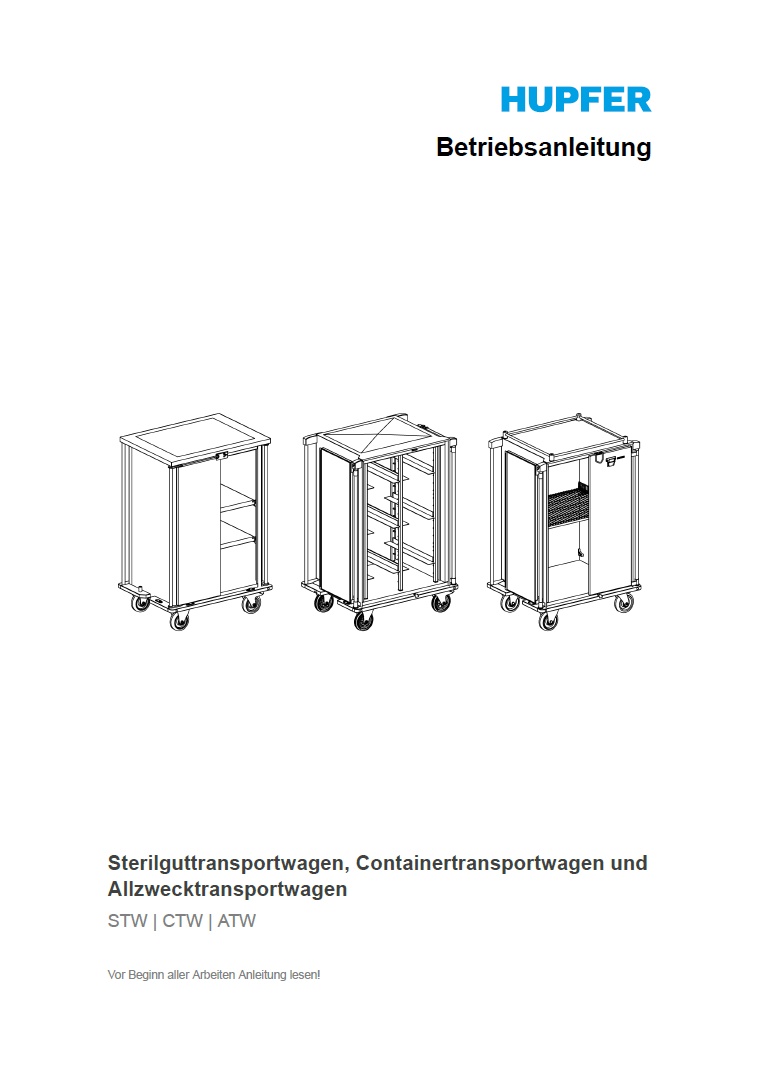

STW, CTW, ATW I Betriebsanleitung
TypeOperating and assembly instructionsFile typepdf (1.96 MB)Creation Date30 Sep 2024DescriptionPDF, multilingual -
Container transport trolley | Sterile supply transport trolley | CTW-6 | CTW-9 | STW-6 | STW-9 | Operating instructions
TypeOperating and assembly instructionsFile typepdf (0.50 MB)Creation Date4 Dec 2020 -
Care instructions for stainless steel
TypeOperating and assembly instructionsFile typepdf (0.54 MB)Creation Date30 Nov 2020 -
Container and sterile goods transport trolley
TypeBrochures and product informationFile typepdf (4.10 MB)Creation Date15 Oct 2019 -
7504642 DWG drawing
TypeDWG drawingsFile typedwg (0.25 MB)Creation Date15 Oct 2019Protected download for dealers and consultants: Please log in and get in touch with our contact partners with regard to activation if necessary.
Accessories
Stahl vzkt T1/160 - Stahl vzkt T1/200
P/N 0125052
Stahl vzkt T1/160 - Edelst T3/160 LR/BR
P/N 0125082
PapKl 90/18/70
P/N 7500895
Spare parts
BR St vzkt T1/160
P/N 014000152
LR T1/160 mF
P/N 014000151
