Gastronorm trolley for 36 × GN
RWG/VT 1/36 GN 75-B-U
Product code:
0163351
Key facts
Closed with wing door
Crosswise insertion
Pitch: 75 mm
U-shaped rails
Product information

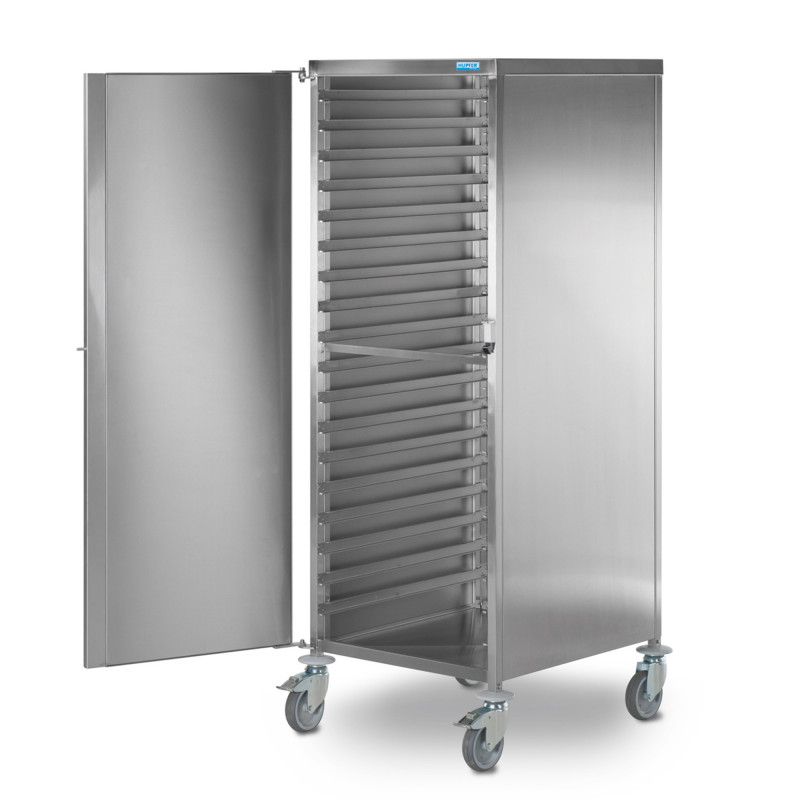

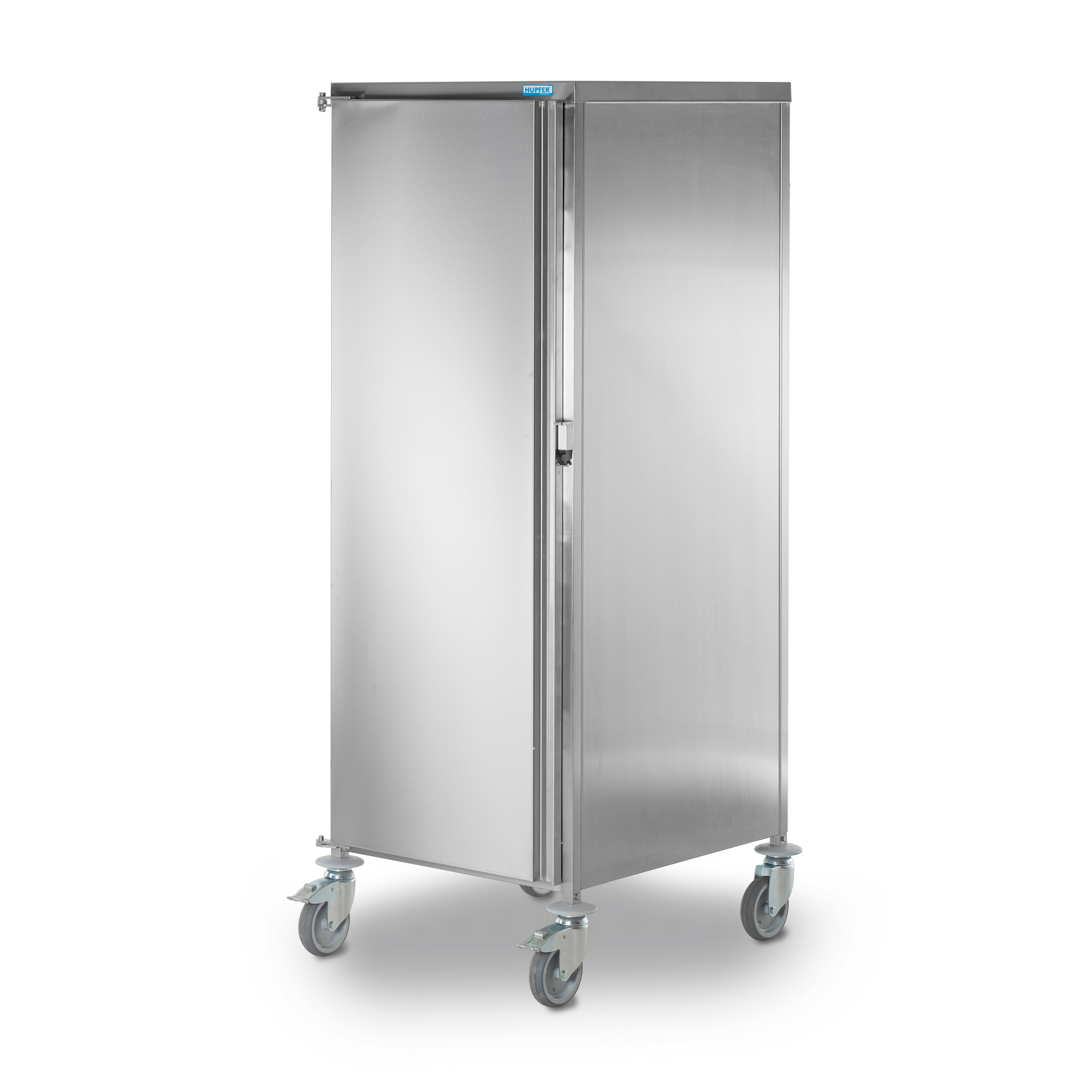

Trolley with one compartment in robust, self-supporting and hygienic design, made of high-quality stainless steel square tubes, with panellings on all sides and a double-wing door. Welded U-shaped shelf rails with push-through and tilt protections on both sides as per DIN EN 18867-2. In addition to the vertical square tubes, 2 rectangular-profile cross braces ensure user-friendly handling. 4 polyethylene disc bumpers serve as bumpers and protect trolley on all sides as well as building-side walls from being damaged. Trolley runs on 4 swivel casters of which 2 with total locks, ø 4.9'' (125 mm), with pin fastening.
The Hupfer gastronorm trolley RWG / Z 1 / 36 GN 75-B-U is the only shelf trolley to be completely enclosed as series standard, and features a rail spacing of 75 mm, which gives it a 50 % greater capacity (when GN containers without lids with a depth of 150 mm are placed in it) in comparison to other products.
Technical information
Capacity: | 36 × Tablett GN 1/1 oder 18 × GN 2/1 |
Modular dimension: | 75 mm |
Insertion type: | Crosswise insertion |
Payload: | 180 kg |
Weight: | 65.52 kg |
Width: | 659 mm |
Depth: | 739 mm |
Height: | 1665 mm |
Downloads
-
Spec sheet
TypeProduct dataFile typepdf (ca. 1.5 MB)Creation Date25.12.2024 -
Tender specification
TypeProduct dataFile typeText for clipboardCreation Date25.12.2024 -
Care instructions for stainless steel
TypeOperating and assembly instructionsFile typepdf (0.54 MB)Creation Date30 Nov 2020
Spare parts
AbwRo Ø95/17,5 gr Vierkantrohr 25/25
P/N 014012051
LR Poly/St Rz1/125 mF
P/N 0191445155
