Euro container picking trolley
KMW EB 82-63/1711
Product code:
0163872
Key facts
For Euro containers 600 × 400 mm
Max. 12 Euro containers E2
Max. load: 350 kg
Stainless steel
Product information

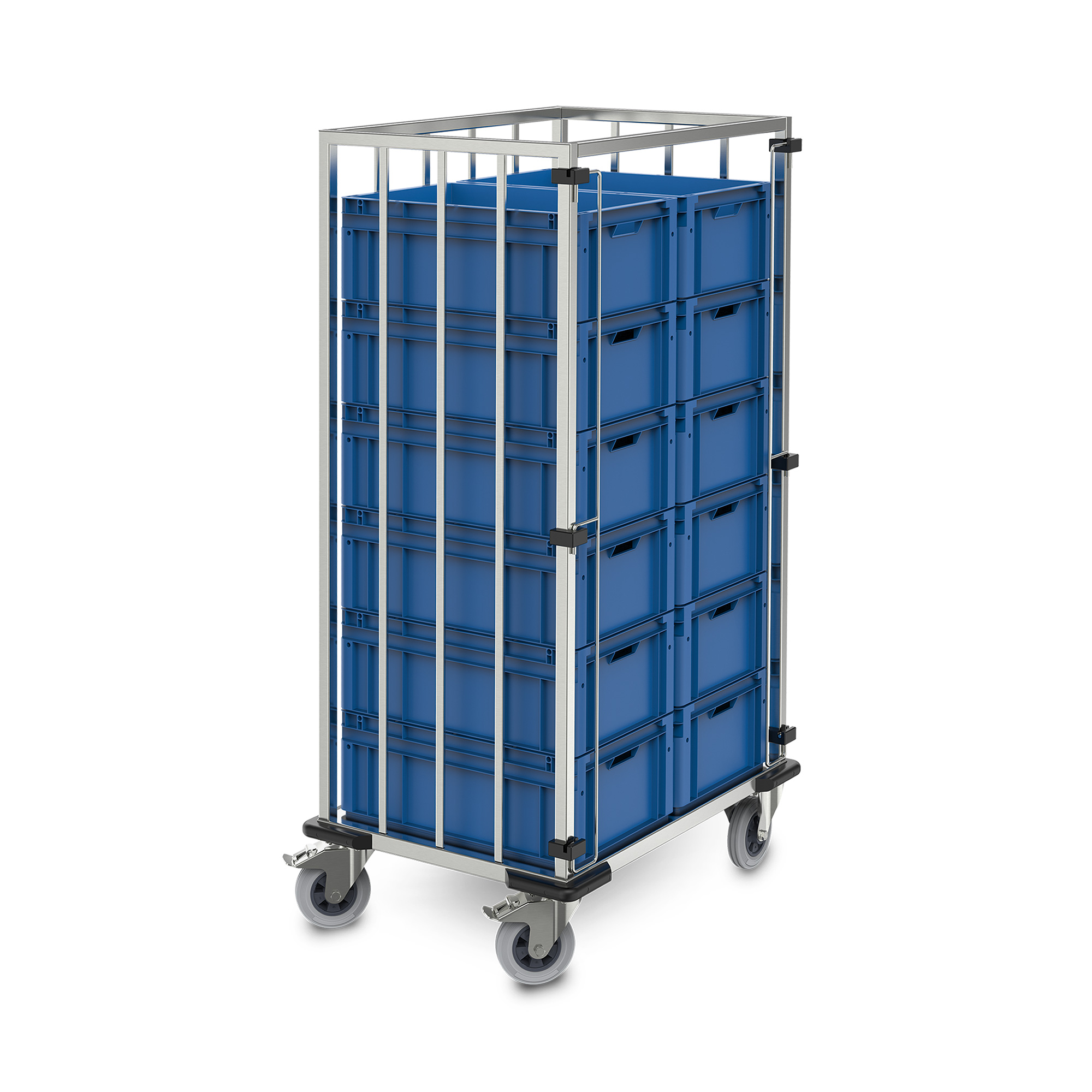

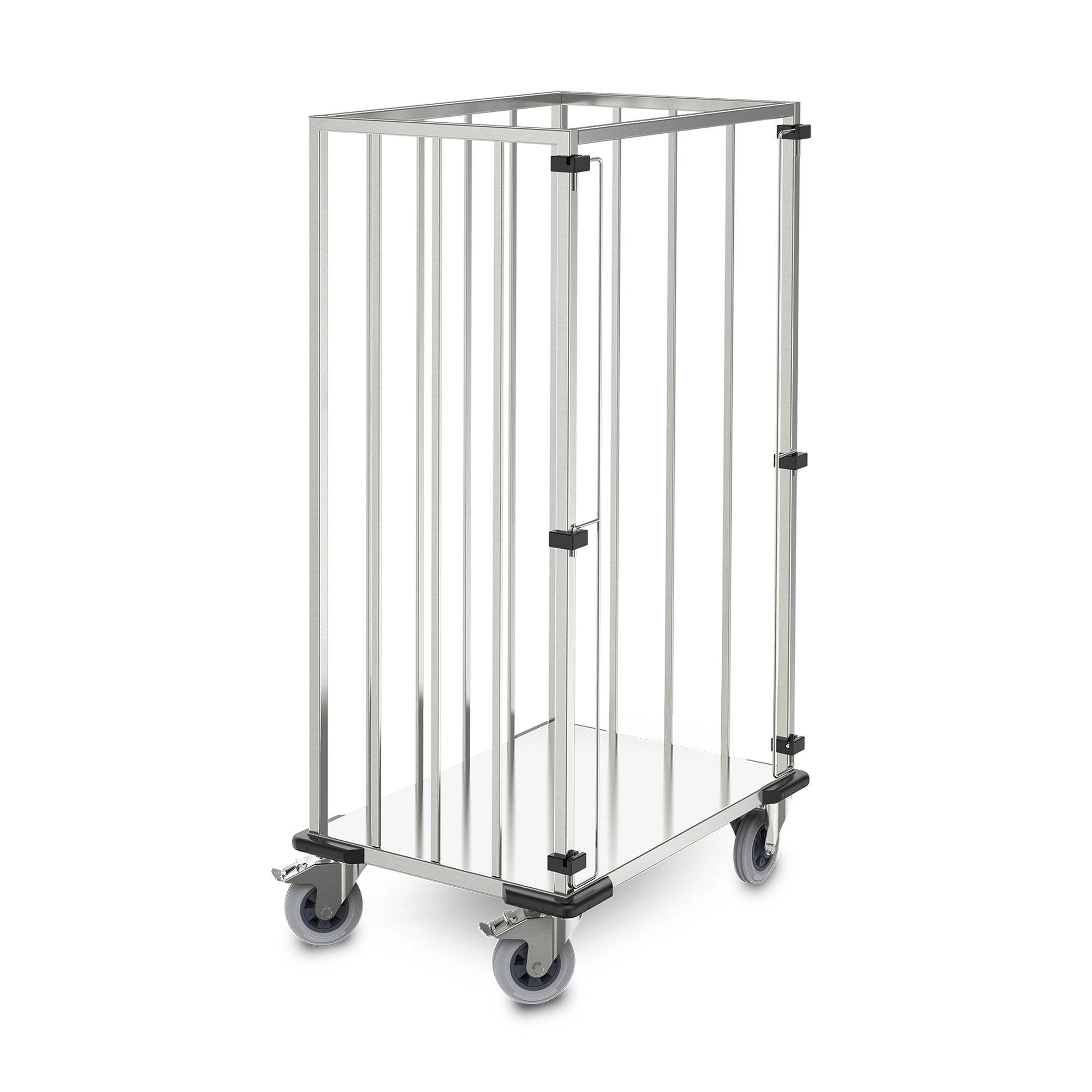

Welded structure made of 30 × 30 mm rectangular tube with four full-length vertical stop bars on rear and three on front, made of 20 × 10 mm profile tube. Firmly welded, enclosed stainless steel shelf as base shelf to hold 2 × 6 Euro containers of 600 × 400 mm. Two swivel stop bars on the front made of 8.0 mm stainless steel wire for the Euro containers. 4 solid polymer disc bumpers for all-round collision protection of the trolley and walls. Mobile trolley with 2 swivel castors with total brakes and 2 fixed castors, secured with multiple bolted screw-on panels.
The Hupfer picking trolley for Euro containers RTW/S EB 82-63/1711 features high load limits and the ideal shelf dimensions for order picking and the transport of goods delivered in Euro containers, and therefore for the transition between goods delivery and storage.
Technical information
Capacity: | Max. 12 Eurobehälter E2 |
Payload: | 350 kg |
Weight: | 45.873 kg |
Width: | 969 mm |
Depth: | 694 mm |
Height: | 1711 mm |
Downloads
-
Spec sheet
TypeProduct dataFile typepdf (ca. 1.5 MB)Creation Date24.11.2024 -
Tender specification
TypeProduct dataFile typeText for clipboardCreation Date24.11.2024 -
Care instructions for stainless steel
TypeOperating and assembly instructionsFile typepdf (0.54 MB)Creation Date30 Nov 2020 -
Logistics system for Euro containers
TypeBrochures and product informationFile typepdf (2.07 MB)Creation Date15 Oct 2019 -
0163872 DWG drawing
TypeDWG drawingsFile typedwg (0.28 MB)Creation Date15 Oct 2019Protected download for dealers and consultants: Please log in and get in touch with our contact partners with regard to activation if necessary.
Accessories
Stahl vzkt T1/160 - Stahl vzkt T1/200
P/N 0125052
Stahl vzkt T1/160 - Edelst T3/160 LR/BR
P/N 0125082
Spare parts
BR St vzkt T1/160
P/N 014000152
LR T1/160 mF
P/N 014000151
