Euro container production trolley
RWG EB 1/5
Product code:
0163610
Key facts
For Euro containers 600 × 400 mm
Max. 5 Euro containers E2
With 5 pairs of L-profile rails
Lengthwise insertion
Product information

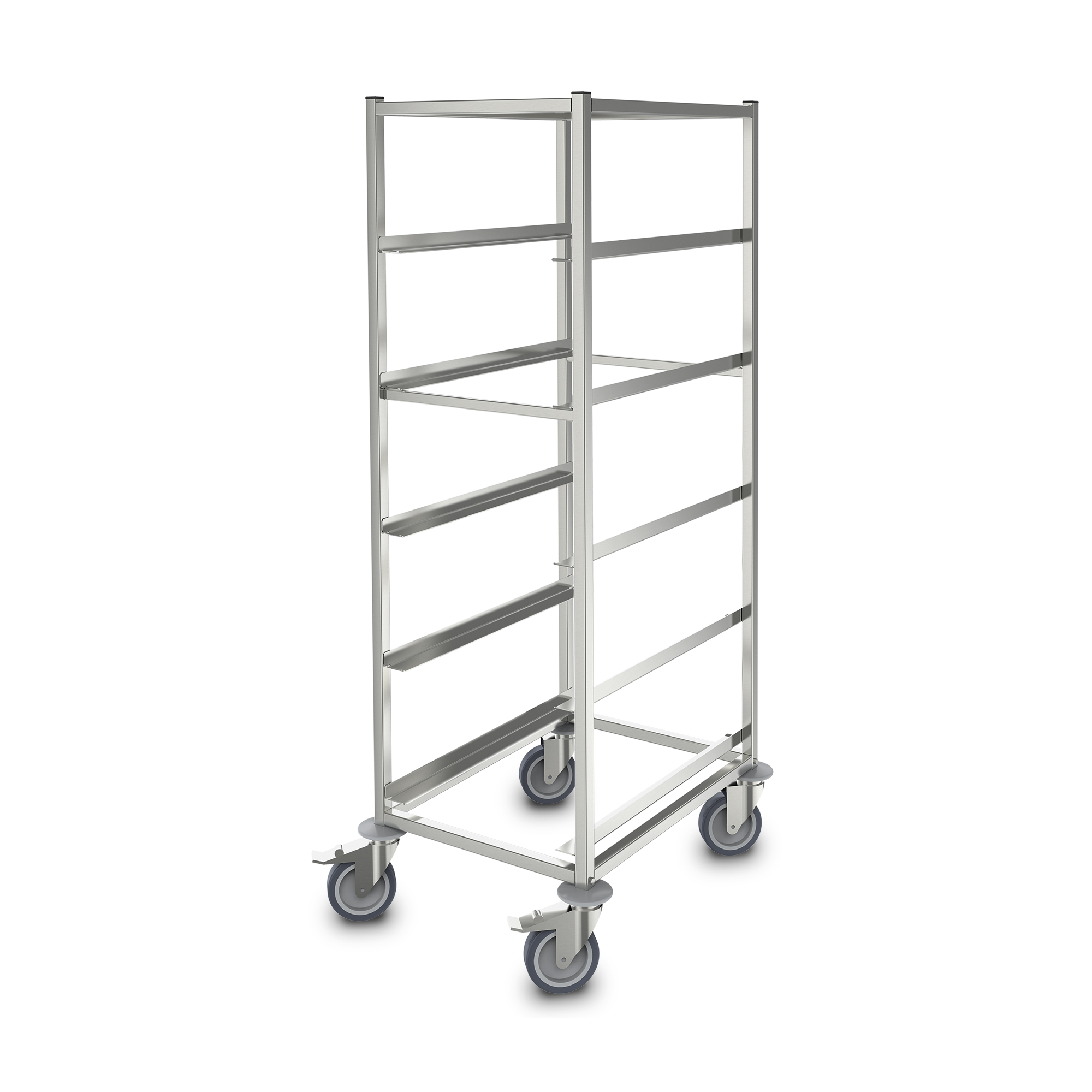

Trolley made entirely of high-quality stainless steel, stable, self-supporting and hygienic design. Frame made of rectangular tube with plastic end caps and firmly welded L-rails for lengthwise insertion of Euro containers. Stop bars on both sides as per DIN EN 18867-2. 4 polyethylene disc bumpers for all-round collision protection of the trolley and walls. Trolley with 4 swivel castors, including 2 with total brakes, ø 125 mm, with pin fixing.

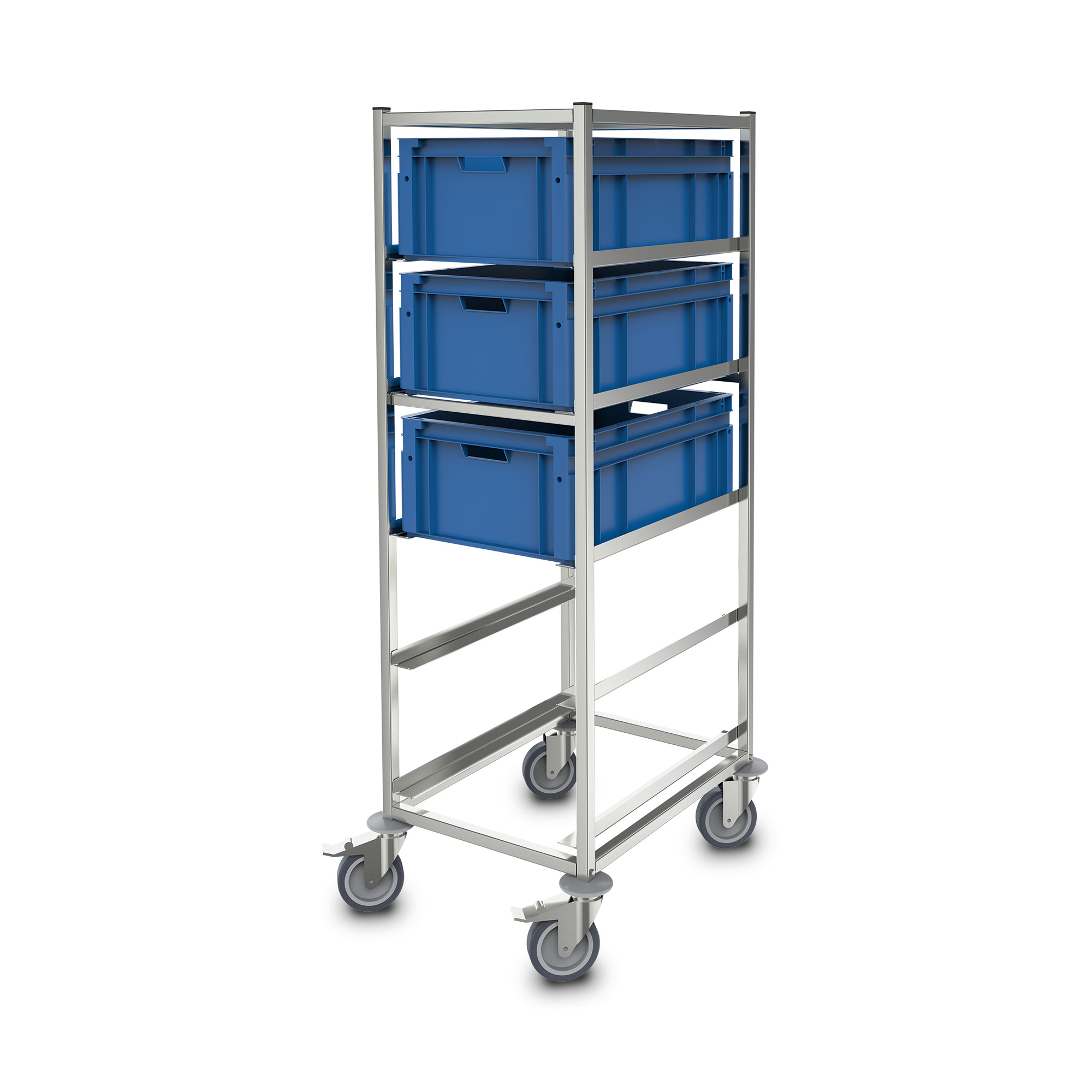

The Hupfer production trolley for Euro containers PW EB 1 / 5 is a lightweight, compact and manoeuvrable trolley, making it particularly suitable for use in tight production spaces and for order picking of smaller product quantities.
Technical information
| Capacity: | Max. 5 Eurobehälter E2 |
| Modular dimension: | 250 mm |
| Payload: | 100 kg |
| Weight: | 19.538 kg |
| Width: | 539 mm |
| Depth: | 702 mm |
| Height: | 1534 mm |
Downloads
-
Spec sheet
TypeProduct dataFile typepdf (ca. 1.5 MB)Creation Date22.12.2024 -
Tender specification
TypeProduct dataFile typeText for clipboardCreation Date22.12.2024 -
Care instructions for stainless steel
TypeOperating and assembly instructionsFile typepdf (0.54 MB)Creation Date30 Nov 2020 -
0163610 DWG drawing
TypeDWG drawingsFile typedwg (0.12 MB)Creation Date15 Oct 2019 -
Logistics system for Euro containers
TypeBrochures and product informationFile typepdf (2.07 MB)Creation Date15 Oct 2019
Accessories
TS PW-EB 1/5
P/N 0164595
Spare parts
AbwRo Ø95/17,5 gr Vierkantrohr 25/25
P/N 014012051
