Euro container dolly
KR 60-40 EB
Product code:
0164183
Key facts
For Euro containers 600 × 400 mm
Stainless steel
Product information

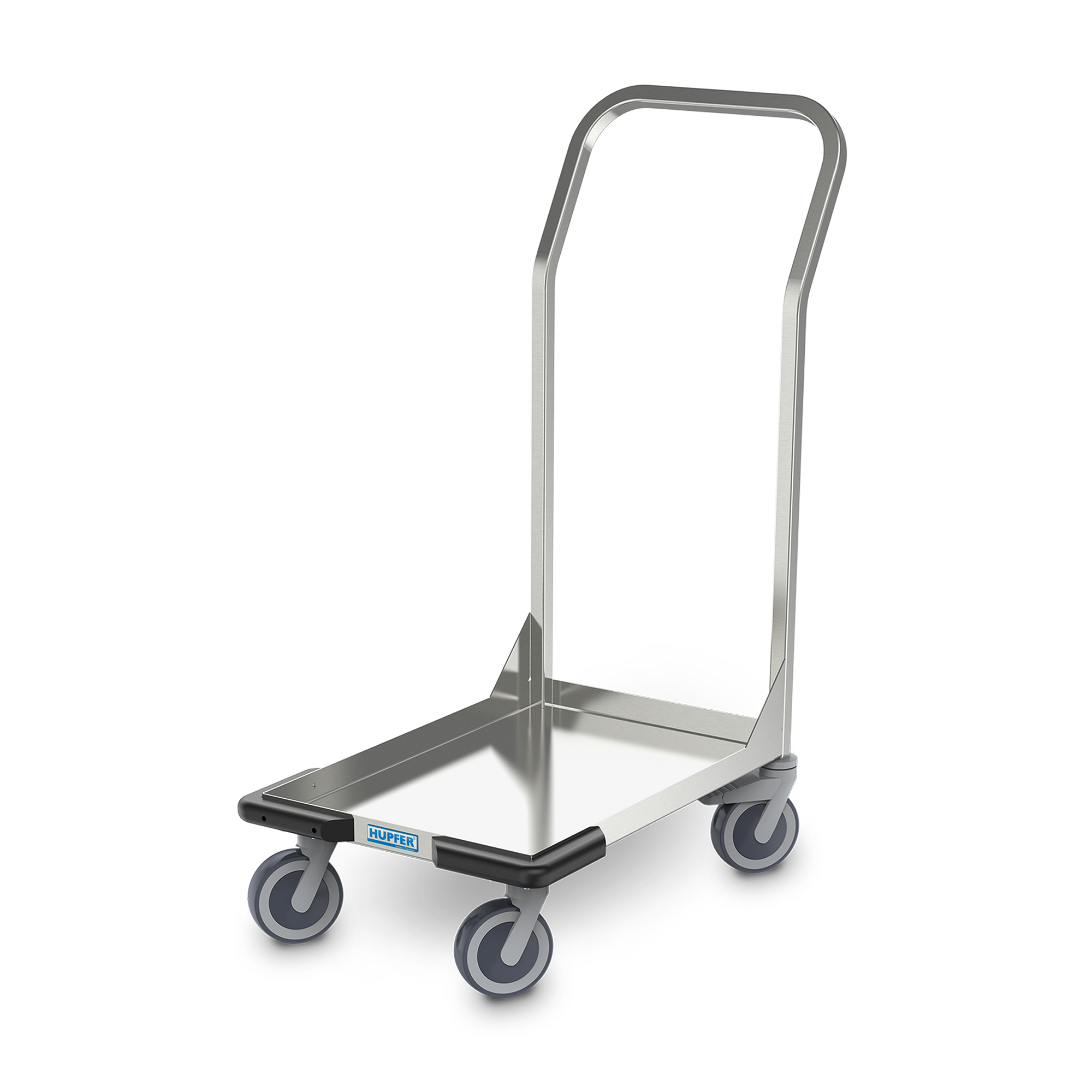

Stable and hygienic stainless steel design. Tub-shaped platform with all-round upstand and push handle made of rectangular tube firmly welded with two gusset plates. 2 solid corner bumpers on the front protect both the trolley and walls from damage. Trolley on 4 swivel castors, including 2 with total brakes, ø 125 mm, with panel fixing in front and pin fixings on push handle side.

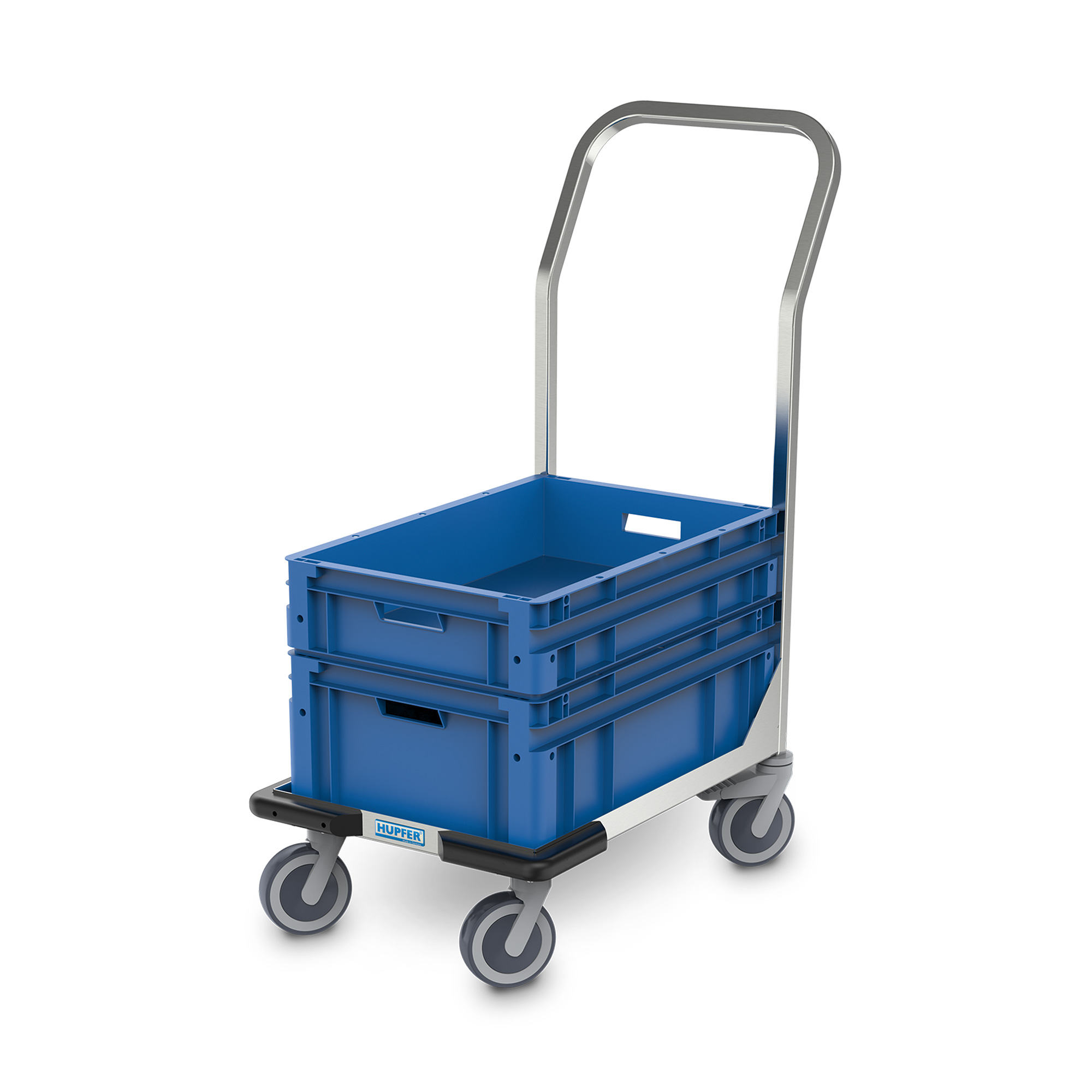

The Hupfer basket trolley for Euro containers KR 60-0 EB features a platform with all-round raised edges, making it sturdy to push and ensuring the stacked containers are properly secured in comparison to other products.
Technical information
Capacity: | Für Eurobehälter 600 × 400 mm |
Payload: | 80 kg |
Weight: | 10.179 kg |
Width: | 800 mm |
Depth: | 476 mm |
Height: | 1021 mm |
Downloads
-
Spec sheet
TypeProduct dataFile typepdf (ca. 1.5 MB)Creation Date25.11.2024 -
Tender specification
TypeProduct dataFile typeText for clipboardCreation Date25.11.2024 -
Care instructions for stainless steel
TypeOperating and assembly instructionsFile typepdf (0.54 MB)Creation Date30 Nov 2020 -
0164183 DWG drawing
TypeDWG drawingsFile typedwg (0.15 MB)Creation Date15 Oct 2019Protected download for dealers and consultants: Please log in and get in touch with our contact partners with regard to activation if necessary. -
Logistics system for Euro containers
TypeBrochures and product informationFile typepdf (2.07 MB)Creation Date15 Oct 2019
Accessories
Poly P3/Rz3/125 - Edelst P3/Rz3/125
P/N 0164472
Spare parts
LR Poly P3/125
P/N 014000401
LR Poly Rz3/125 mF
P/N 014000406
