Wired shelf for 1 Euro Container
A-DR 1xEB 500/600
Product code:
0164171
Key facts
For inclined attachment in uprights
500 × 600 mm
Electropolished stainless steel
Delivery time: on request
500 × 600 mm electro-polished stainless steel wire shelf for one 600 × 400 mm Euro container.... more
Product information

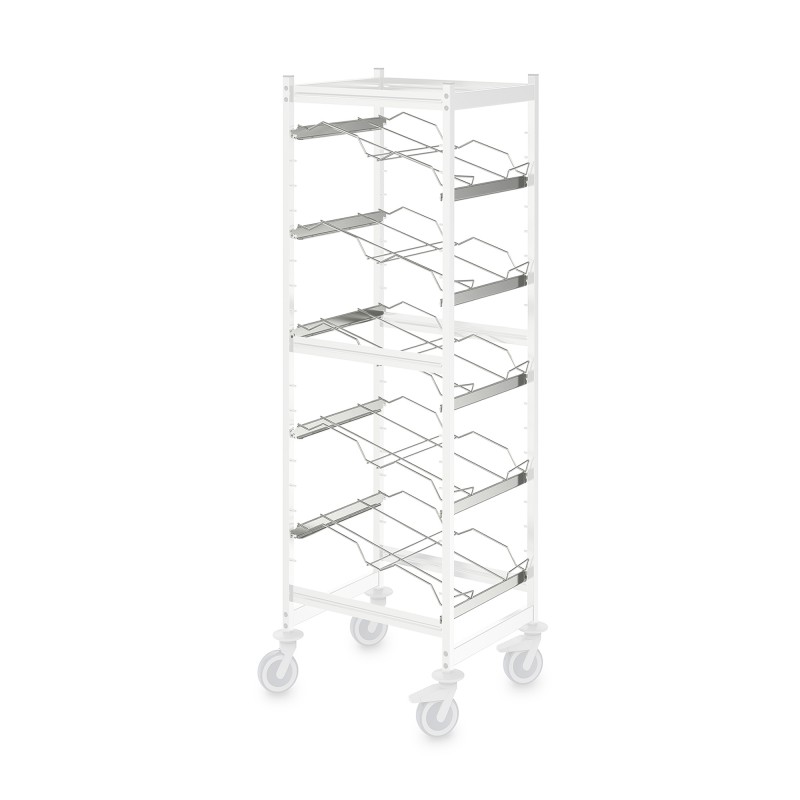

500 × 600 mm electro-polished stainless steel wire shelf for one 600 × 400 mm Euro container. Shelf made of 35 × 10 × 3.0 mm longitudinal angle sections for hooking into uprights with a 75 mm pitch. Welded ø 6 mm cross wires in between, forming surface with approx. 16° forward inclination, welded with longitudinal reinforcements made of ø 5 mm wire. Additional welded 45 mm high ø6 mm wires as additional stops on the front and face.
Technical information
| Weight: | 1.904 kg |
| Width: | 500 mm |
| Depth: | 573 mm |
| Height: | 90 mm |
Downloads
-
Spec sheet
TypeProduct dataFile typepdf (ca. 1.5 MB)Creation Date25.12.2024 -
Tender specification
TypeProduct dataFile typeText for clipboardCreation Date25.12.2024 -
Logistics system for Euro containers
TypeBrochures and product informationFile typepdf (2.07 MB)Creation Date15 Oct 2019 -
0164171 DWG drawing
TypeDWG drawingsFile typedwg (0.12 MB)Creation Date15 Oct 2019
Suitable for
Contains special equipment
Euro container transport shelving unit
RTW/Z EB 5-6/1850
P/N 0123103
