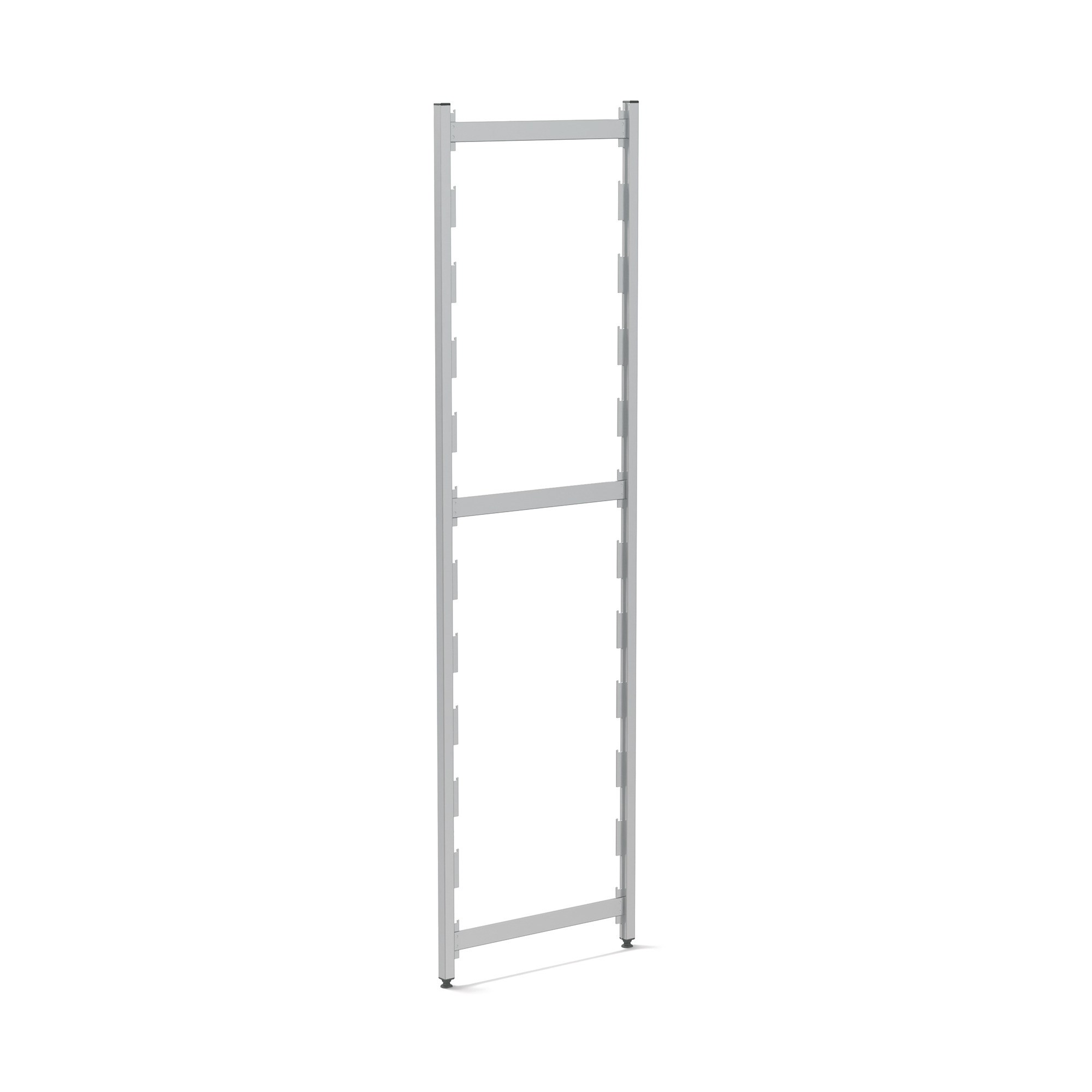

Similar to illustration
NORM20/12 upright
RG-RS/N20/12 600kg 1800/500
Product code:
0201247
Modular shelving system made of plain anodised aluminium in hygienic design as per DIN 18868-2, suitable for continuous use at -40 to +140°F (-40 to +60 °C), for arrangement in a straight line or for angled setup with corner hooks, freely extendable lengthwise.
Key facts
Aluminium
Pitch 150 mm
Delivery time: on request
Uprights made of special 1.0 × 1.0'' (25 × 25 mm) square tubes, connected and stabilised by... more
Product information
Uprights made of special 1.0 × 1.0'' (25 × 25 mm) square tubes, connected and stabilised by press-fitted 1.6 × 0. 28'' (40 × 7 mm) upright spokes running crosswise. Upper covering caps made of plastic, height-adjustable screw feet for compensating floor unevennesses of up to 1.0'' (25 mm) as hygienic ending of upright. Welded shelf lugs at distances of 5.9'' (150 mm) for easy attaching of shelves.
Technical information
| Modular dimension: | 150 mm |
| Max. section load | 600 |
| Carbon footprint (TM65 Basic Report) | 70.900000000000006 kgCO₂e |
| Weight: | 2.385 kg |
| Width: | 504 mm |
| Depth: | 25 mm |
| Height: | 1800 mm |
Downloads
-
Spec sheet
TypeProduct dataFile typepdf (ca. 1.5 MB)Creation Date24.12.2024 -
Tender specification
TypeProduct dataFile typeText for clipboardCreation Date24.12.2024 -
TÜV NORD CERT Sicherheitszeichen | Lagerregale (DE)
TypeCertificatesFile typepdf (0.29 MB)Creation Date24 Oct 2019 -
TÜV Nord certificate GS | Norm 20
TypeCertificatesFile typepdf (1.45 MB)Creation Date18 Oct 2019 -
Shelving range | Medical
TypeBrochures and product informationFile typepdf (12.16 MB)Creation Date15 Oct 2019DescriptionMedical -
Aluminium shelving system | Assembly instructions
TypeOperating and assembly instructionsFile typepdf (0.26 MB)Creation Date15 Oct 2019 -
Shelving range | Commercial Catering
TypeBrochures and product informationFile typepdf (17.66 MB)Creation Date15 Oct 2019
Spare parts
Screw foot for Norm 12/20 upright
RG-SO N12/20 SF RS
P/N 014002509
Prices visible after registration. Details
