Similar to illustration
NORM35 upright
RG-RS/N35 2000/610
Product code:
0126052
Modular shelving system made of high-quality stainless steel in hygienic design as per DIN 18868-2, suitable for continuous use at -40 to +140°F (-40 to +60 °C), for stand-alone placement, freely extendable lengthwise.
Key facts
Section load: 2,000 kg
Height: 2,000 mm
Incl. 2 support bars
Stainless steel
Delivery time: on request
Uprights made of 1. 2 × 1. 2'' (30 × 30 mm) square tubes, connected by welded upright spokes made... more
Product information

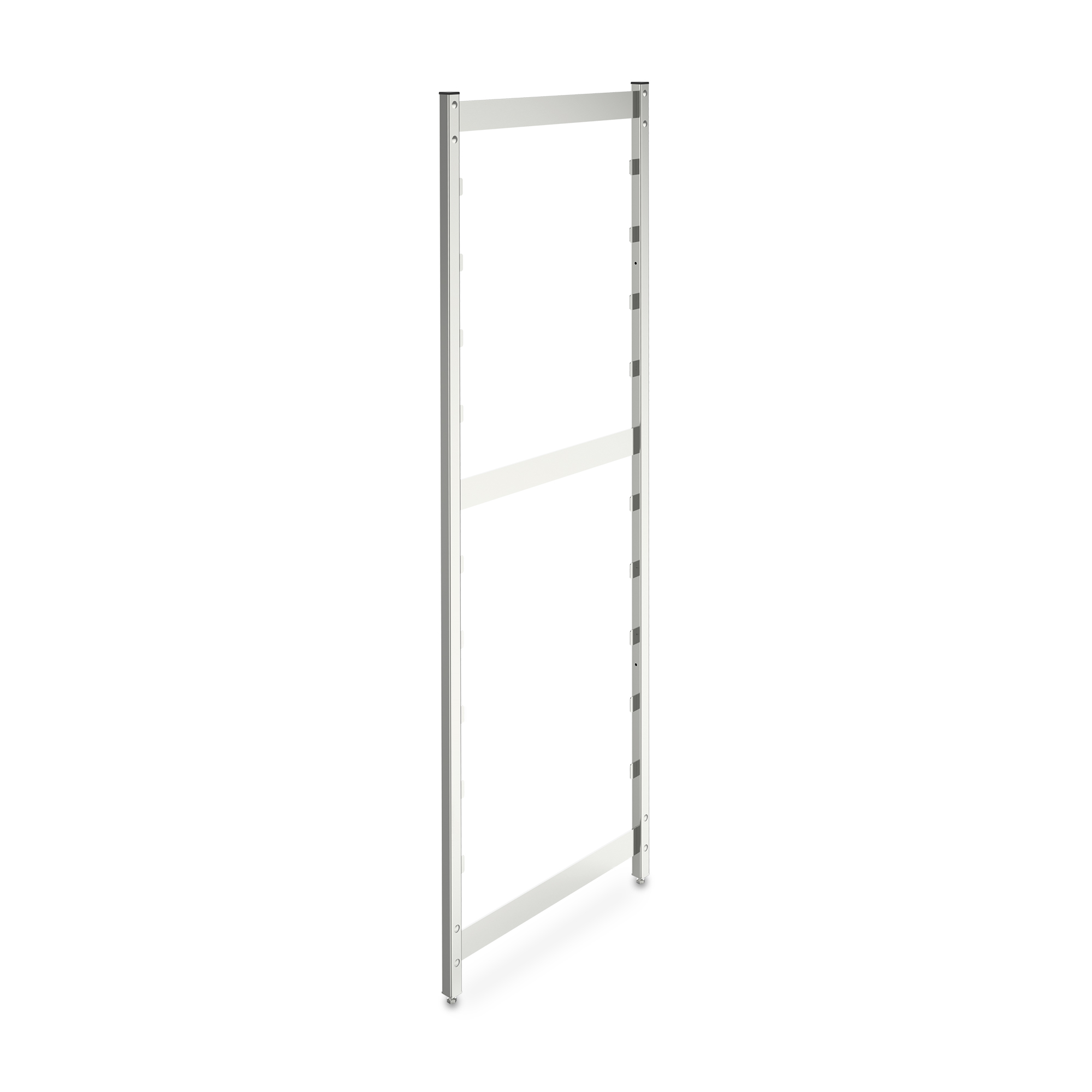

Uprights made of 1. 2 × 1. 2'' (30 × 30 mm) square tubes, connected by welded upright spokes made of 2.4 × 0.16'' (60 × 4.0 mm) flat profiles that also serve as possibility for permanently attaching shelves. Additional attachment options through shelf lugs that are welded to the uprights in a 5.9'' (150 mm) grid, enabling two included hook-on elements per upright to be attached variably. Upper covering caps made of plastic and height-adjustable aluminium screw feet for compensating floor unevennesses of up to 1.0'' (25 mm) as hygienic ending of upright.
Technical information
| Modular dimension: | 150 mm |
| Carbon footprint (TM65 Basic Report) | 102 kgCO₂e |
| Weight: | 10.053 kg |
| Width: | 30 mm |
| Depth: | 610 mm |
| Height: | 2000 mm |
Downloads
-
Spec sheet
TypeProduct dataFile typepdf (ca. 1.5 MB)Creation Date25.12.2024 -
Tender specification
TypeProduct dataFile typeText for clipboardCreation Date25.12.2024 -
TÜV NORD CERT Sicherheitszeichen | Lagerregale (DE)
TypeCertificatesFile typepdf (0.29 MB)Creation Date24 Oct 2019 -
TÜV Nord certificate GS | Norm 35
TypeCertificatesFile typepdf (1.45 MB)Creation Date18 Oct 2019 -
Shelving range | Medical
TypeBrochures and product informationFile typepdf (12.16 MB)Creation Date15 Oct 2019DescriptionMedical -
Shelving range | Commercial Catering
TypeBrochures and product informationFile typepdf (17.66 MB)Creation Date15 Oct 2019
Spare parts
