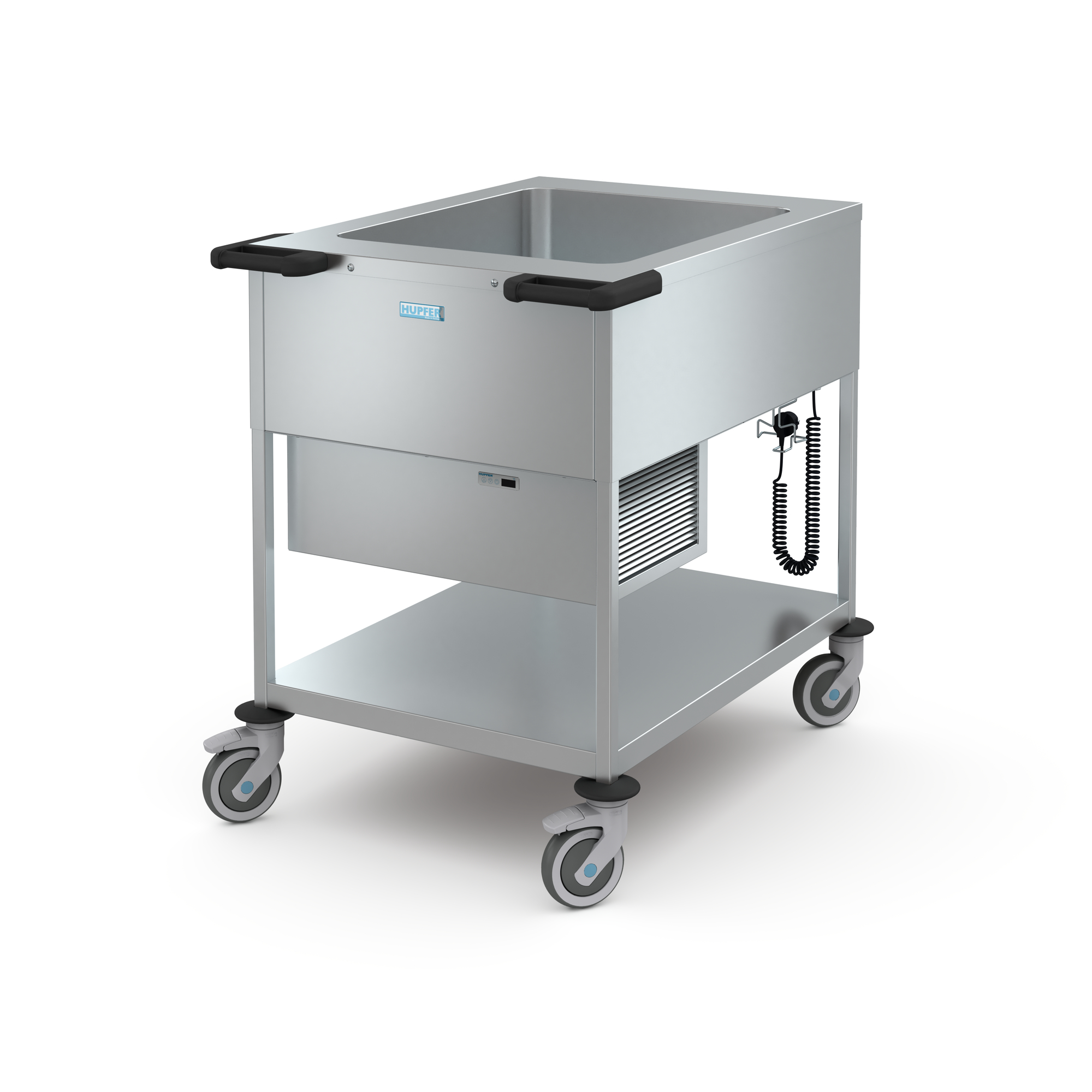

Mobile bain marie, chilled
SPA/K 2GN DW
Product code:
0129470-1
Key facts
With compressor cooling 6°C
Continuous pan for 2 × GN 1/1-200
Condensation-free usable capacity
All-round tubing
Product information
Trolley in robust, self-supporting and hygienic design, made of high-quality stainless steel. Closed design with a seamless and jointless welded and fully insulated pan. Pan holds a GN 1/1-200 or smaller container. Residue-free emptying of well, thanks to special inclination of base, using 1/2'' ball valve to be operated from the exterior. Drain tap protected against inadvertent opening, setting can easily be seen even from a distance. Active cooling by cooling aggregate located underneath the pan; cooling unit comprises CFC-free refrigerant and all-round tubing to ensure a high cooling capacity. Electronic temperature control with fixed settings made at the factory, frontal operation using On/Off switch with integrated indicator light. Current supply on the underside of cooling aggregate via dimensionally stable and extractable spiral cable with angle plug and hanger. Welded frame rack made of square tubes with welded, continuously-folded shelf with continuous profile edge in trolley base. Four massive polyethylene disc bumpers at the bottom and two polymer corner bumpers at the upper corners of the structure that serve as bumpers and very effectively protect the equipment on all sides as well as building-side walls from being damaged, with integrated, ergonomically-shaped push bars. Trolley runs on 4 swivel casters of which 2 with total locks, ø 4.9'' (125 mm), with pin fastening.
Technical information
Capacity: | 2 × Behälter GN 1/1-200 oder kleiner |
Payload: | 84 kg |
Capacity: | 365 W |
Cooling capacity: | 340 Watt |
Supply voltage: | AC 220-230 V |
Nominal current: | 1.60 A |
Protection class: | Klasse 1 |
Frequency: | 50-60 Hz |
Weight: | 54 kg |
Width: | 970 mm |
Depth: | 695 mm |
Height: | 900 mm |
Downloads
-
Spec sheet
TypeProduct dataFile typepdf (ca. 1.5 MB)Creation Date23.11.2024 -
Tender specification
TypeProduct dataFile typeText for clipboardCreation Date23.11.2024 -
Mobile bain marie | SPA/K | Operating instructions
TypeOperating and assembly instructionsFile typepdf (1.10 MB)Creation Date7 Dec 2020 -
Care instructions for stainless steel
TypeOperating and assembly instructionsFile typepdf (0.54 MB)Creation Date30 Nov 2020 -
Food serving trolleys
TypeBrochures and product informationFile typepdf (4.80 MB)Creation Date15 Oct 2019 -
0129470 DWG drawing
TypeDWG drawingsFile typedwg (0.14 MB)Creation Date15 Oct 2019Protected download for dealers and consultants: Please log in and get in touch with our contact partners with regard to activation if necessary.
Accessories
KB/ls SPA 2EB + SPTW
P/N 0162261
Poly Rz3/125 - Edelst Rz3/125
P/N 0163848
Spare parts
LR Poly Rz3/125
P/N 014000405
LR Poly Rz3/125 mF
P/N 014000406
AbwRo Ø95/17,5 sw Vierkantrohr 25/25
P/N 014002111
