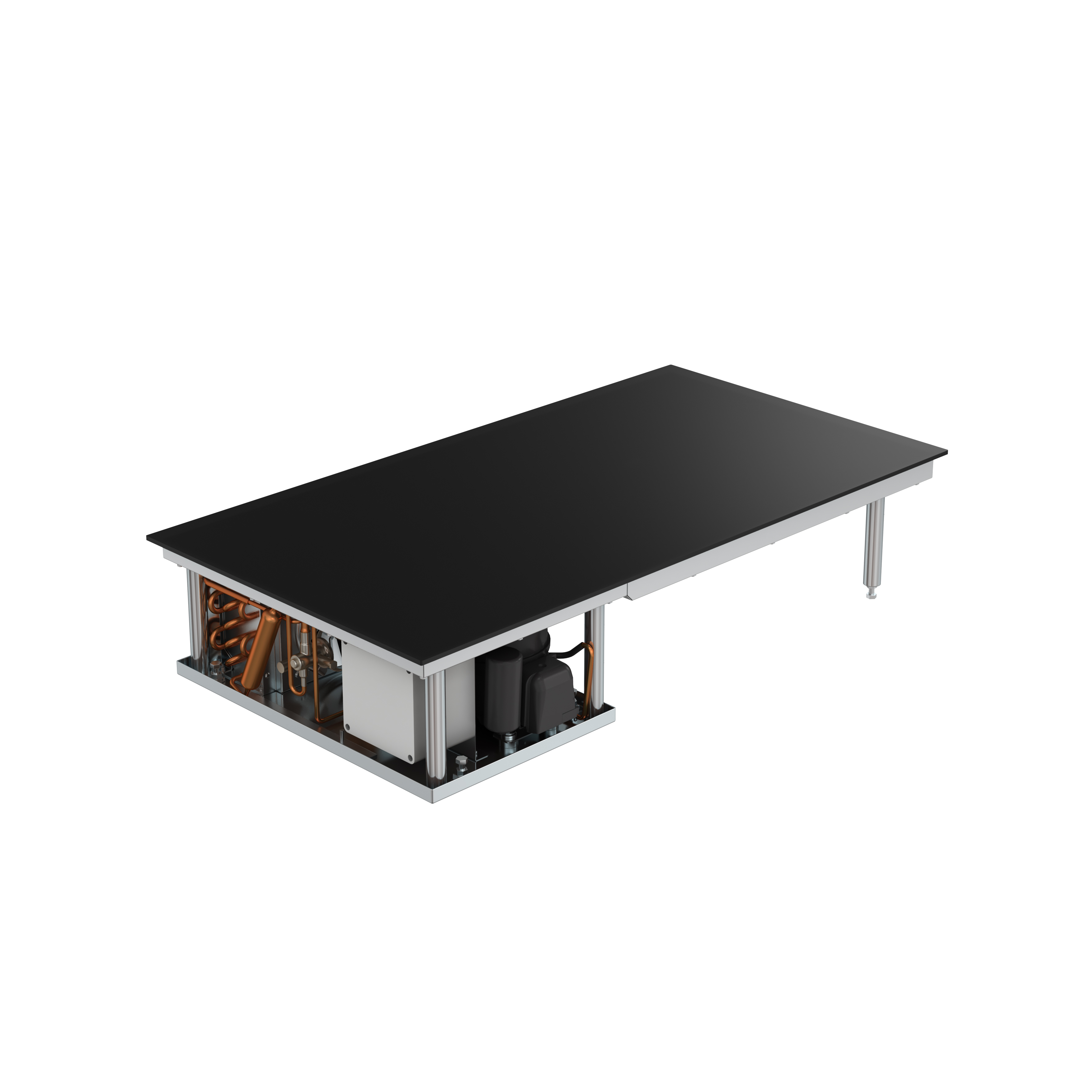

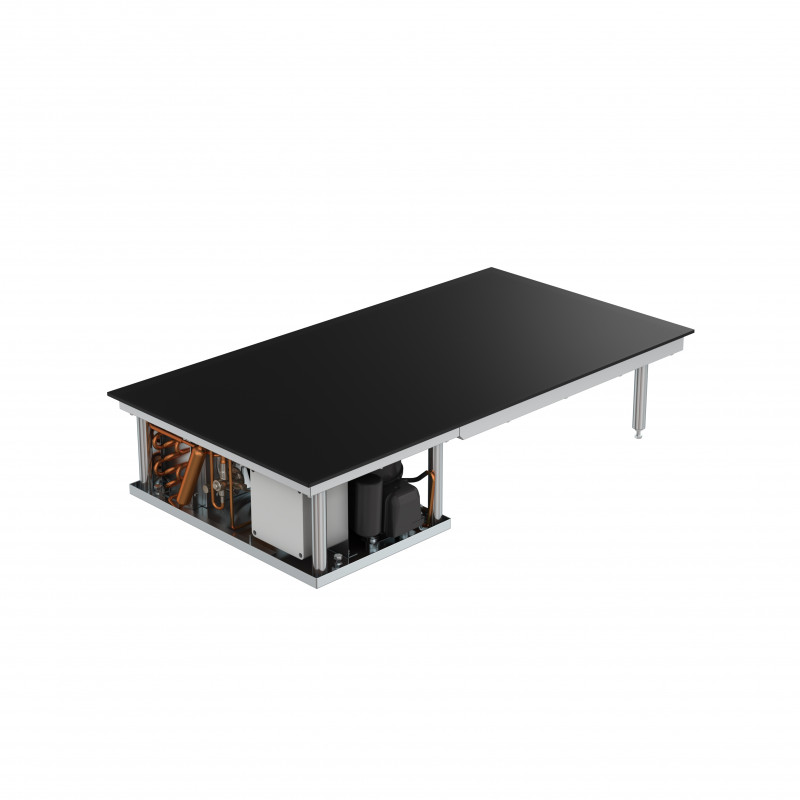

Hot-Cold-Plate GN-2/1 black glass top with cooling unit built-in unit, without frame
KWP 2/1 GLA KA/R290 EW1
Product code:
8900217
Key facts
Space saving due to cold/warm function
Cost saving due to flexible use in the food serving area
Time saving due to short switching times
Future-proof due to refrigerant R290
Product information
High-quality stainless steel unit in stable, self-supporting and hygienic design. A hot and cold plate with a cover plate that ensures optimum temperature distribution due to its excellent temperature distribution is integrated in the cover. The use of a control system with digitally programmable temperatures and compressor cooling technology on the one hand and self-regulating PTC heating elements with a short heat-up phase and a constant linear temperature curve on the other hand additionally enables a fast change between cold and hot operation in the range from -5°C to +140° C.
Technical information
Payload: | 18 kg |
Capacity: | 1840 W |
Supply voltage: | AC 220-230 V |
Nominal current: | 8.00 A |
Protection class: | Klasse 1 |
Frequency: | 50-60 Hz |
Weight: | 31.895 kg |
Width: | 660 mm |
Depth: | 530 mm |
Height: | 200 mm |
Downloads
-
Spec sheet
TypeProduct dataFile typepdf (ca. 1.5 MB)Creation Date22.12.2024 -
Tender specification
TypeProduct dataFile typeText for clipboardCreation Date22.12.2024 -
Product datasheet hot and cold plate GN-2/1 - glass for cooling unit
TypeBrochures and product informationFile typepdf (0.07 MB)Creation Date21 Nov 2024DescriptionDetailed datasheet GN-2/1 KWP, English -
8900217 DWG
TypeDWG drawingsFile typedwg (0.50 MB)Creation Date20 Aug 2024DescriptionDWG Zeichnung -
Hot and cold plate brochure chefs
TypeBrochures and product informationFile typepdf (1.11 MB)Creation Date14 Oct 2022DescriptionBrochure for chefs -
Hot and cold plate brochure kitchen planners
TypeBrochures and product informationFile typepdf (1.18 MB)Creation Date14 Oct 2022DescriptionBrochure kitchen planners -
Hot and cold plate brochure counter builders
TypeBrochures and product informationFile typepdf (1.13 MB)Creation Date14 Oct 2022DescriptionBrochure for counter builders -
Assembly Instructions Hot and cold plate KWP
TypeOperating and assembly instructionsFile typepdf (1.47 MB)Creation Date27 Apr 2022DescriptionDE, ENProtected download for dealers and consultants: Please log in and get in touch with our contact partners with regard to activation if necessary.
